Settings#

Settings come in two scopes:

  • Your preferences (e.g., the theme or the list of spectral lines) apply to every workspace.

  • Workspace settings (e.g., the data and catalog paths, or the data viewer configuration) belong to the current workspace (see Workspaces).

Most of them can be changed in Settings. The others are changed by editing the configuration files, which are listed in full in Configuration reference.

The Settings dialog#

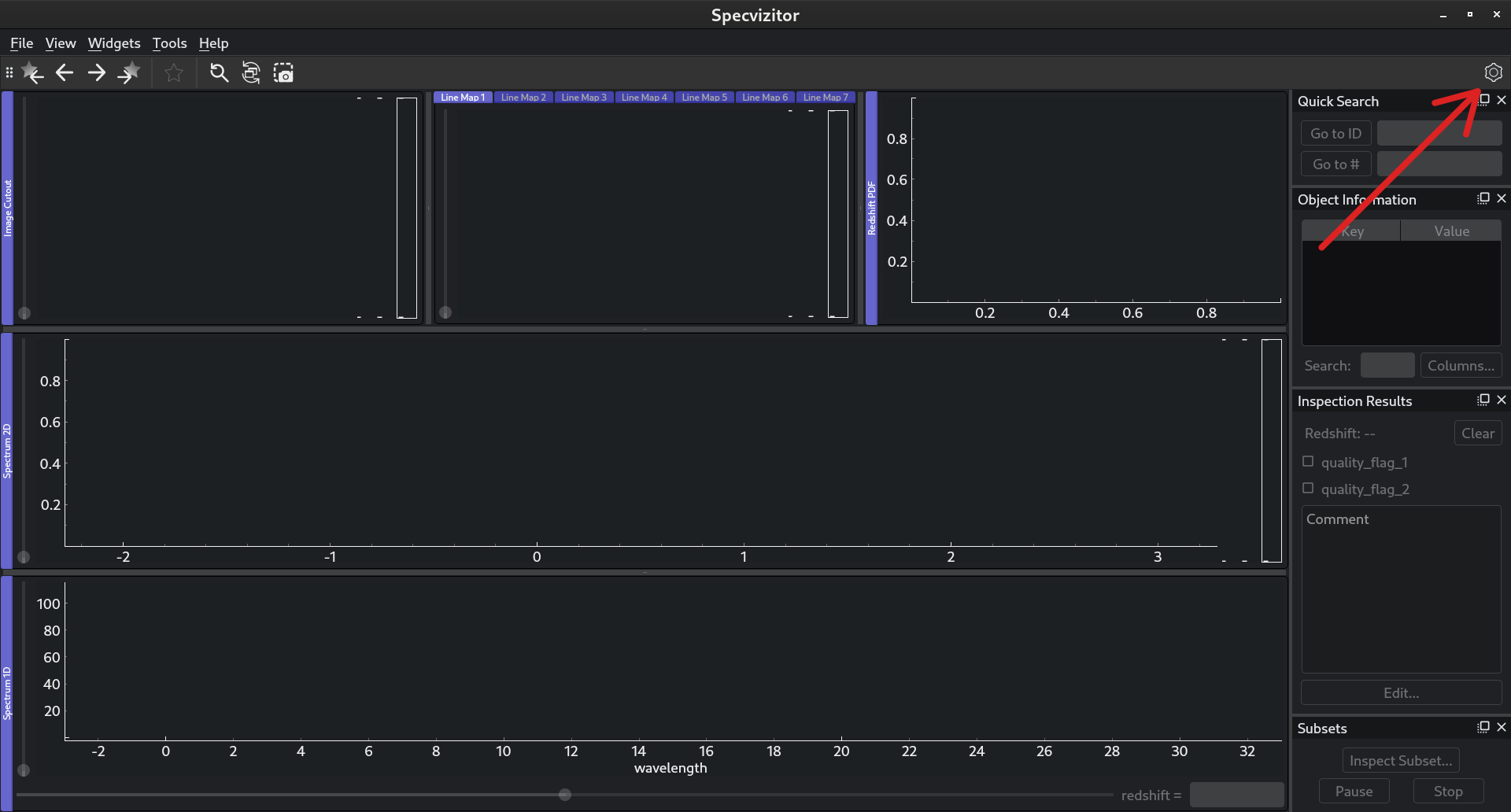

Open Tools ‣ Settings, or click on the cogwheel in Toolbar:

../_images/cogwheel.png

Settings include the following sections:

Section

Purpose(s)

Scope

Appearance

Change the application theme, configure antialiasing [1], etc.

You

Catalog

Load a new catalog, configure aliases for column names

Workspace

Data Source

Change the data path, add new images, configure unit aliases

Workspace

Data Viewer

Set the redshift steps and the default screenshot location, add spectral lines

You

Plugins

Enable the plugins that adapt the data viewer to a dataset

Workspace

Most changes take effect immediately once you click OK. A few cannot, because they are applied once while the application starts, and specvizitor will offer to restart:

Setting

Why a restart is needed

Application theme

Applied as a stylesheet at startup

Plugins

Imported at startup

Adding spectral lines#

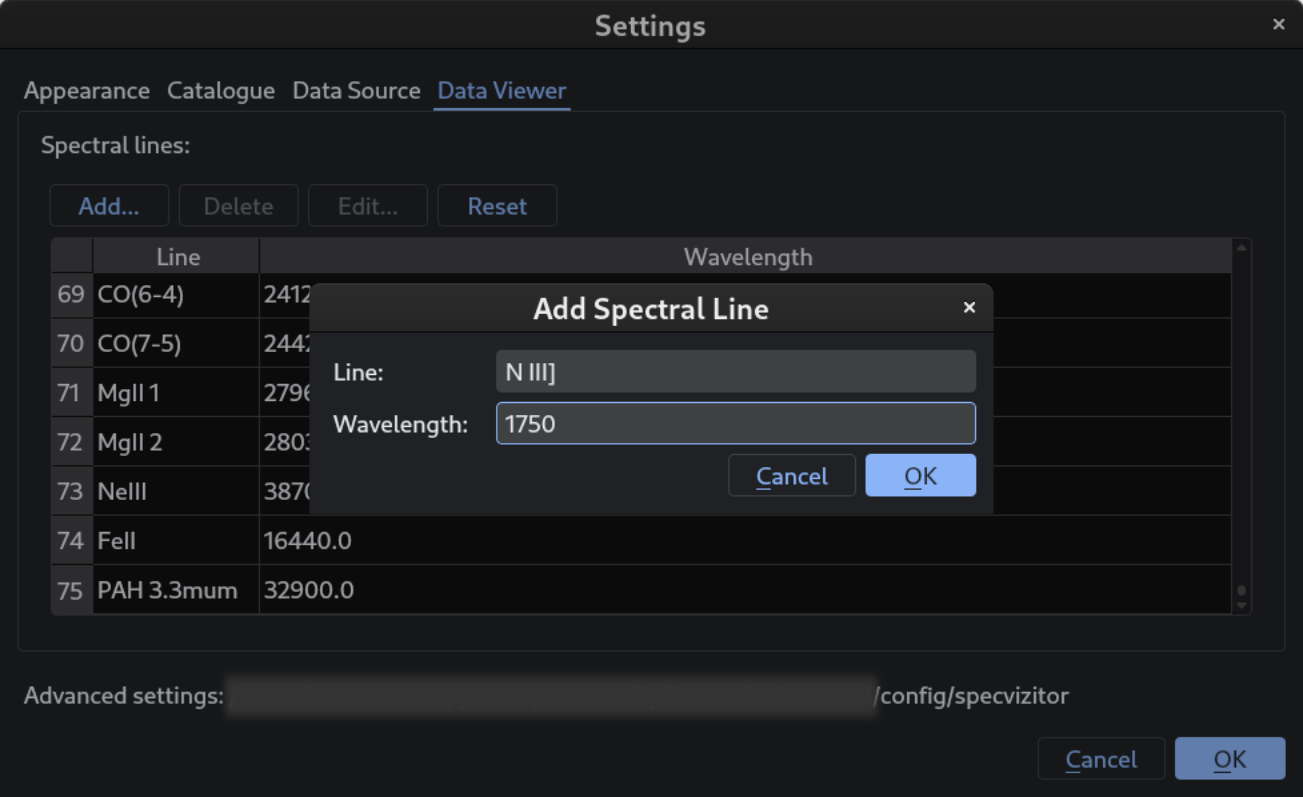

Open Settings ‣ Data Viewer. Click Add… and enter the line’s name and its vacuum wavelength (in Å by default):

../_images/add_spectral_line.png

Click OK. The new line should appear in the data viewer.

Configuration files#

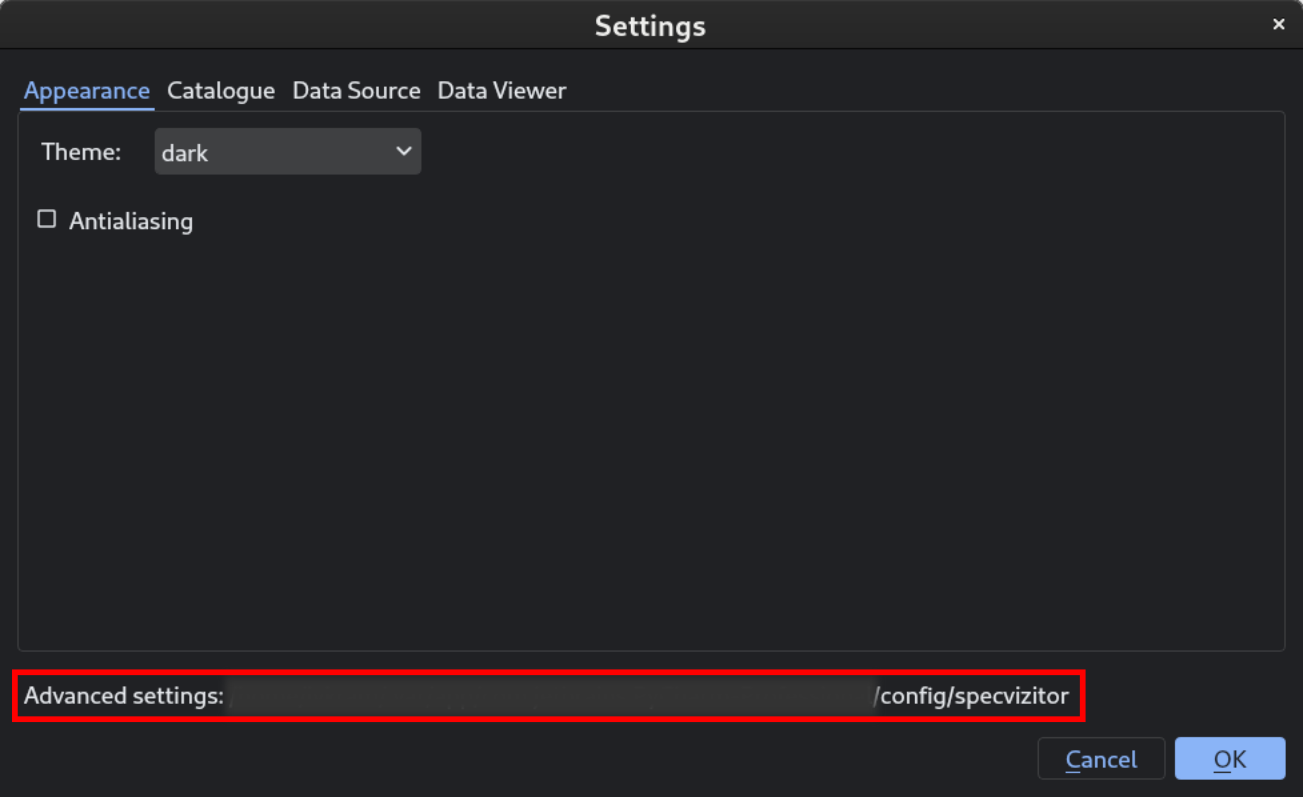

The settings are stored as YAML files. Your preferences are in the application configuration directory [2], and the workspace settings are in the workspace directory. Click the directory indicated at the bottom of Settings (under “Advanced settings”) to open it in your file manager:

../_images/advanced_settings.png

File

Directory

Contents

In Settings

config.yml

Application

Your preferences

Yes

spectral_lines.yml

Application

The spectral lines shown in the data viewer

Yes

workspaces.yml

Application

The list of known workspaces

Managed by specvizitor

workspace.yml

Workspace

Data and catalog paths, catalog settings, plugins

Yes

data_widgets.yml

Workspace

The widgets of the data viewer (see Data Viewer)

No

layout.yml

Workspace

The window layout

Managed by specvizitor

state.yml

Workspace

The inspection file you had open, and your position in it

Managed by specvizitor

Open one of these files in a text editor and make the desired changes.

Tip

You do not have to restart specvizitor after editing data_widgets.yml. Use Widgets ‣ Restore… and select the file you just edited: the new configuration is applied immediately.

How the files are read and written#

  • Missing files are created with the default values the first time specvizitor needs them.

  • Files are only written when something changes. Opening specvizitor does not rewrite a file you edited by hand, so your comments and formatting stay until the application itself saves a change to that file.

  • Missing keys take their default value.

  • Unknown keys, such as a misspelled one, are ignored. Specvizitor logs a warning that names each of them with its full path (e.g., catalog.filname). They are dropped the next time the application saves the file.

  • Invalid files (a YAML syntax error, or a value of the wrong type) are reset to their default values, and the error is logged with the key it concerns. For every file except layout.yml and state.yml, the original is kept next to it as *.yml.bak (e.g., workspace.yml.bak).

  • Schema versions. Every file starts with schema_version, the version of the layout it was written in. Do not edit it. A file written by an older version of specvizitor is upgraded once, and the original is kept as *.yml.bak. A file written by a newer version is read as well as possible but never overwritten.

Configuration reference#

In the tables below, a dotted key such as appearance.theme is written in YAML as a nested mapping:

appearance:
  theme: dark

config.yml#

Key

Default

Description

appearance.theme

dark

dark or light. Applied at startup.

appearance.antialiasing

false

Smooth lines and edges in the data viewer (might decrease the GUI responsiveness)

appearance.viewer_spacing

3

Space between the widgets of the data viewer, in pixels

appearance.viewer_margins

3

Margins around each widget of the data viewer, in pixels

data_viewer.default_screenshot_location

null

The directory proposed when saving a screenshot

data_viewer.redshift_step

0.01

How much Q and W change the redshift

data_viewer.redshift_small_step

0.0005

How much Shift+Q and Shift+W change the redshift

spectral_lines.yml#

Key

Default

Description

wave_unit

angstrom

The unit of the wavelengths below, in any form astropy understands (e.g., micron)

wavelengths

(see the file)

The rest-frame vacuum wavelength of each line, by name (e.g., Ha: 6564.633)

workspaces.yml#

Key

Default

Description

active

null

The path of the workspace opened at startup

known

[]

The paths of the known workspaces, most recently used first

workspace.yml#

Key

Default

Description

name

null

The name of the workspace. Without a name, the directory name is shown.

catalog.filename

null

The path to the catalog

catalog.translate

(see the file)

Aliases for catalog column names, as name: [alias, ...]. For example, id: [ID, NUMBER] uses the first of ID or NUMBER found in the catalog as the id column. The id column is required; id2, id3, … add further ID levels.

data.dir

null

The directory with the data files

data.id_pattern

(see the file)

A regular expression that matches the object ID in data file names. If several matches are found in a file name, the longest one is used.

data.images

{}

Images shared by all objects, e.g., large mosaics that widgets cut out from. Each image has a label and the keys below.

data.images.<label>.filename

null

The path to the image

data.images.<label>.wcs_source

null

The file to read the WCS from, if not the image itself

data.images.<label>.loader

auto

How to read the image (see data.loader under data_widgets.yml)

data.images.<label>.loader_params

{}

Parameters passed to the loader (see data.loader_params under data_widgets.yml)

data.enabled_unit_aliases

(see the file)

Non-standard unit names found in data files, as unit: [alias, ...] (e.g., AA: [ANGSTROMS])

inspection_results.default_flags

[]

The flags added to every new inspection file

plugins

(see the file)

The enabled plugins. Applied at startup.

data_widgets.yml#

The widgets are listed by title under images and plots (see Data Viewer for examples).

Keys shared by all widgets#

Key

Default

Description

visible

true

Show the widget

position

bottom

Where the widget’s dock is placed: top, bottom, left, right, above or below

relative_to

null

The title of the widget that position refers to. Without it, the dock is placed relative to the whole data viewer.

dock_title_fmt

short

The dock title: fixed (the widget title), short (the FITS extension name and version, if any) or long (the file name followed by the extension)

data

Where the data comes from (see Data)

x_axis, y_axis

The axes (see Axes)

spectral_lines

The spectral lines (see Spectral lines)

smoothing_slider

visible, up to 3 in steps of 0.05

Smooths the data with a Gaussian of the chosen width (see Sliders)

redshift_slider

hidden, up to 10 in steps of 1e-6

Moves the spectral lines (see Sliders)

Keys of images#

Key

Default

Description

wcs_transform

false

Show the image in sky coordinates, using its WCS

rotate

null

Rotate the image by this angle in degrees, or by the catalog’s PA column with auto

color_bar

The color bar (see Color bars)

central_axes.x, central_axes.y

false

Draw a horizontal (x) or vertical (y) line through the center of the image

central_crosshair

false

Draw a crosshair at the center of the image

show_sources

false

Mark the catalog sources that fall within the image (needs ra and dec columns and a WCS). Clicking a source label opens that object.

Keys of plots#

Key

Default

Description

plots

{}

The lines drawn in the widget, by label

plots.<label>.x, plots.<label>.y

(required)

The table columns plotted against each other

plots.<label>.color

null

The line color, as a name (e.g., red) or a hex code (e.g., '#ff0000')

plots.<label>.hide_label

false

Leave the line out of the legend

Data#

Key

Default

Description

data.filename

null

The data file, relative to data.dir in workspace.yml. Fields in braces are filled in for each object: {id} and any catalog column, with Python format specs (e.g., '{root}_{id:05d}.1D.fits').

data.source

null

The label of a shared image in workspace.yml (data.images) to cut out from, instead of data.filename. The cutout is centered on the object’s ra and dec.

data.loader

auto

How to read the file: generic_fits, rasterio or pil. auto picks one by the file extension, and falls back to generic_fits.

data.loader_params

{}

Parameters passed to the loader. For FITS files: extname and extver, or extname and extver_index (the n-th extension of that name, starting from 0). For a cutout (data.source): cutout_size, half the width of the cutout in pixels (100 by default).

Axes#

Key

Default

Description

visible

true

Show the axis

link_to

null

The title of another widget whose axis this one follows when panning and zooming

unit

null

The unit the data is shown in (e.g., micron). Without it, the data’s own unit is used.

scale

linear

linear or log

label

null

The axis label. Without it, plots are labelled with the name of the plotted column.

limits.min, limits.max

null

The default axis range. Without them, the range of the data is used.

Sliders#

Key

Default

Description

visible

(see above)

Show the slider

link_to

null

The title of another widget whose slider of the same kind this one follows

min_value, max_value, step

(see above)

The slider range and step

default_value

0

The value the slider starts at

catalog_name

null

A catalog column to start at instead, e.g., redshift

show_text_editor

false (true for the redshift)

Show a field for typing the value

n_decimal_places

6

The number of decimal places shown in that field

show_save_button

false (true for the redshift)

Show a button that saves the value to Inspection Results (redshift slider only)

Color bars#

Key

Default

Description

visible

true

Show the color bar

link_to

null

The title of another widget whose color bar levels this one follows

limits.type

minmax

How the levels are set, as in SAOImage DS9: minmax, zscale or user

limits.min, limits.max

null

The levels for user. A level left out is taken from the data.

Spectral lines#

Key

Default

Description

visible

false

Show the lines listed in spectral_lines.yml

color

null

The line color. Without it, the color depends on the theme.

layout.yml and state.yml#

Key

File

Description

dock_layout

layout.yml

The arrangement of the data viewer’s docks

last_inspection_file

state.yml

The inspection file opened at startup

last_object_index

state.yml

The object shown at startup

last_subset_file

state.yml

The subset being inspected, if any
